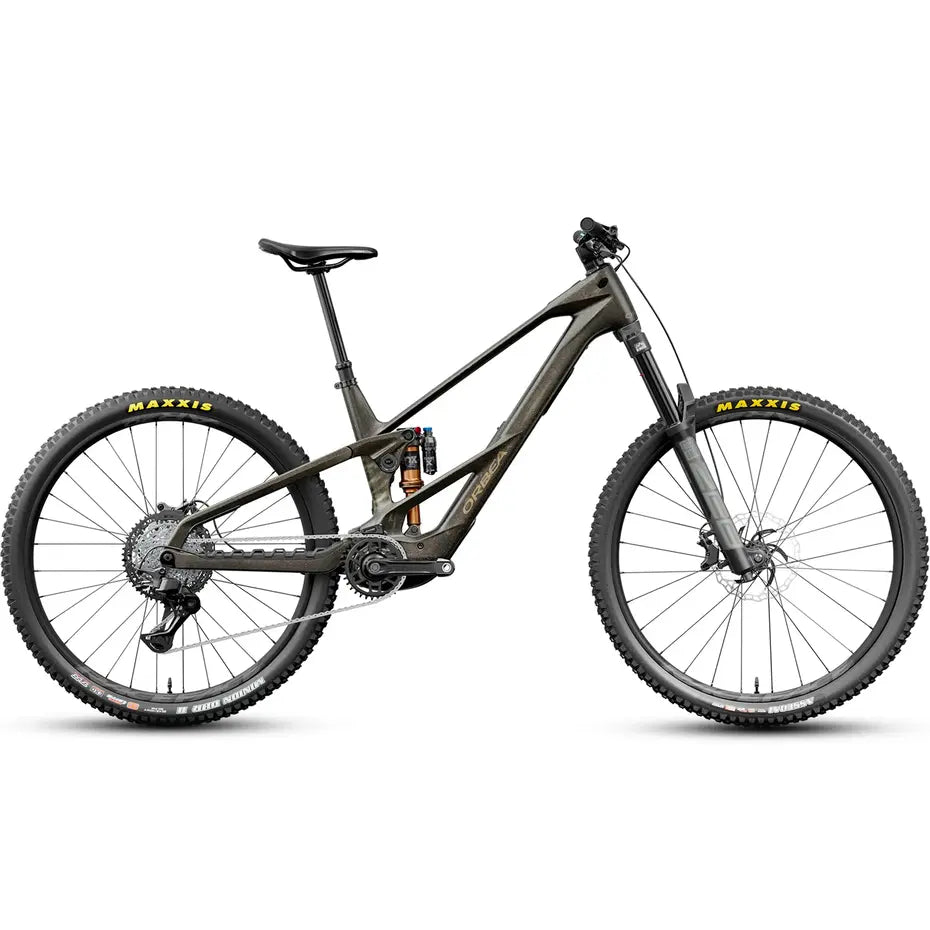

2027 Orbea Wild LT M20 20mph
Built For Confident Full Power Riding
The Wild Carbon LT is designed for riders who want the power of an eMTB without losing the connected, controlled feel of a proper mountain bike. Orbea focused on keeping the bike’s mass low and central, helping it stay calm when speed picks up, and the trail gets rough. The result is a long travel machine that feels planted on descents, confident through corners, and easier to move around when the terrain gets steep, awkward, or fast.
Race-Inspired Suspension
Borrowing key suspension ideas from Orbea’s Rallon enduro platform, this bike is built to handle real mountain terrain with 170mm of rear travel and a supportive, progressive feel. The suspension is made to stay active over chatter and big hits while keeping traction and control under pressure. That means more confidence when charging through chunky sections, holding speed through rough lines, or dropping into descents where stability matters as much as power.
Responsive Support
Orbea’s RS Tune gives the motor a sharper, more natural response to rider input, helping deliver assistance right when it is needed on steep climbs, slow moves, and technical starts. Riders can choose between battery options to prioritize either lighter handling or longer range, while integrated features like sealed pivot bearings, Second Skin frame protection, and the Fully Loaded Pivot tool storage add the practical details needed for hard trail use.
M-20 Build Kit
| Frame | Orbea Wild OMR 2027 |
| Suspension | Suspension |
| Fork | RockShox ZEB Base DebonAir+ 15x110 |
| Shock | Fox Float X Performance |
| Brakes | Brakes |
| Brakes | Shimano MT420 |
| Brake Rotors | Galfer Wave Rotors 200mm |
| Drivetrain | Drivetrain |
| Derailleur | Shimano Deore M7200 SGS |
| Shifter | Shimano Deore M6200 I-Spec EV |
| Cranks | e*thirteen Helix Core e*spec |
| Cassette | Shimano CS-M6200 10-51T |
| Drive Unit | DJI Avinox M2S Motor / DJI Avinox 800/600Wh Battery / DJI Avinox DP100 Display / DJI Avinox BC100 Remote |
| Chain | Shimano M6100 |
| Tensioner / Guide | Orbea eBike chainguide |
| Controls | Controls |
| Handle Bar | OC Mountain Control MC30 Carbon Rise 20, Width 800 |
| Stem | OC Mountain Control MC21 0º |
| Grips | OC Lock-On |
| Headset | Acros ZS56 |
| Saddle | Fizik Terra Aidon 208x145mm Manganese rail |
| Dropper Post | OC Mountain Control MC22 31.6mm |
| Dropper Lever | Shimano SL-MT500 |
| Wheels | Wheels |
| Wheelset | Race Face AR 30c |
| Front Tire | Maxxis Assegai MaxxGrip 3C Exo+ TR 29x2.5WT |
| Rear Tire | Maxxis Minion MaxxTerra 3C DD TR 29x2.4WT |
